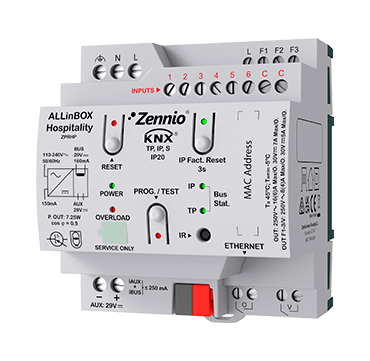

ALLinBOX Hospitality | Multifunction device with KNX power supply, KNX-IP Interface, fan coil controller for 2-pipe unit and 6 a/d inputs


Multifunction all-in-one device that integrates a 160 mA KNX power supply, KNX-IP interface and heating/cooling module with up to 2 thermostats in just 4.5 DIN rail units. The device has 5 outputs: 4 to be used to control a 2-pipe fan coil unit, with quick fan connection using common live, and 1 16 A C-Load multipurpose relay output. It has 6 analog-digital inputs and a logic function module.


Only for ETS5/ETS6


Technical Documentation Date Version Downloads
Datasheet 3 pdf
Manual [1.7]_a pdf
Manual Firmware Updater [1.1]_b pdf
Specific Manuals:
 – NTP Clock Manual [1.0]_a pdf
 – Fan Coil ’Relays’ Manual [4.0]_a pdf
 – “Hospitality” Thermostat Manual [4.0]_a pdf
 – Temperature Probe Manual [3.0]_a pdf
 – Binary Inputs Manual [2.0]_a pdf
 – Motion Detector Manual [3.0]_a pdf
 – Individual Binary Outputs Manual [2.0]_a pdf
 – Logical Functions Manual [3.0]_a pdf
Available Variants of this series:
