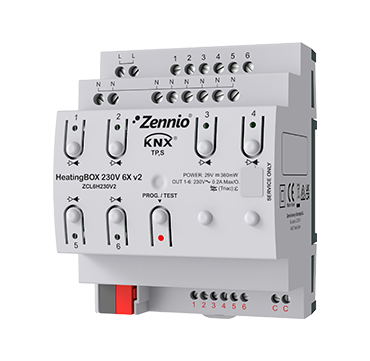

HeatingBOX 230V 6X v2 | Heating actuator for up to 6 outputs 230VAC and 6 inputs

REF: ZCL6H230V2 Categorias: , , Etiquetas: , , , , , ,
Description

Actuator for climate systems based on water pipes which allows the control of up to 6 outputs for on/off valves operated at 230 VAC by means of triacs with short-circuit protection. It includes independent thermostat for each output, 6 analogue-digital inputs and a module with 10 logical functions. It has a sole power input for all the outputs, as well as a common neutral for an easier installation of the valves. It allows manual control of the outputs with status indication through LEDs.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 1 pdf
Manual [1.5]_b pdf
Specific Manuals:
 – Zone Heating Control Manual [1.1]_a pdf
 – Zennio Thermostat Manual [3.0]_a pdf
 – Temperature Probe Manual [3.0]_a pdf
 – Binary Inputs Manual [2.0]_a pdf
 – Logical Functions Manual [3.0]_a pdf
Available Variants of this series:
