Additional information
| Colour | Totally customizable |
|---|---|
| Brands | Zennio |
Description

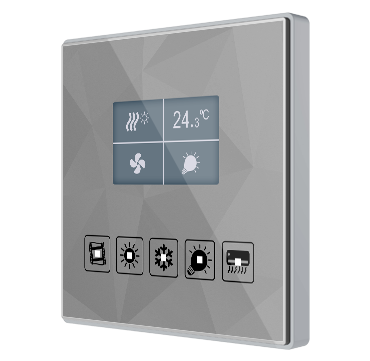

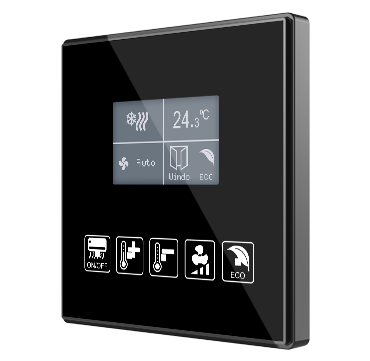

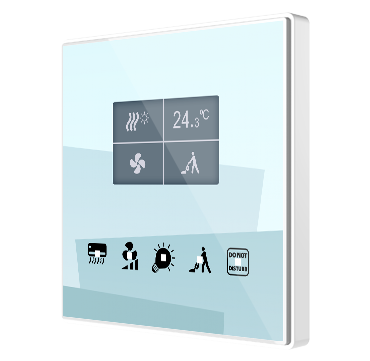

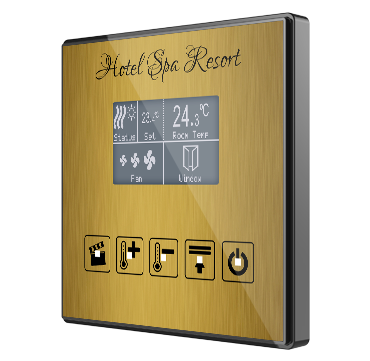

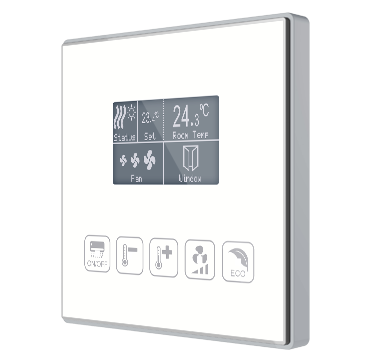

Square TMD-Display is a capacitive room controller with 5 multifunction buttons and 1.8” backlit frame, totally customizable to cause the desired aesthetic impression in any ambience. Everyone can create unique compositions, which could include images, icons, texts or logos. This customization is printed on a high-strength tempered glass with an PC-ABS frame to finish off the author’s work. Square TMD-Display allows selecting the function for each of its buttons and indicators shown in the display. TMD also includes thermostat function, internal temperature probe and two analog/digital inputs.
On-line application for designing your own Capacitive Switch.
APPLICATION PROGRAM ETS:
Only for ETS5/ETS6
Downloads
| Technical Documentation | Date | Version | Downloads |
| Datasheet | 6 | ||
| Manual | [1.5]_a | ||
| Icon List | [1.5]_a | ||
| Manual On-line Application for Designing your own Capacitive Switch Touch-MyDesign | |||
| Specific Manuals: | |||
| – Zennio Thermostat Manual | [0.2]_b | ||
| – Temperature Probe Manual | [0.1]_c | ||
| – Binary Inputs Manual | [0.3]_a | ||
| – Motion Detector Manual | [0.2]_c | ||
