Additional information
| Variants | ZVI-TMDV-PW, ZVI-TMDV-PA, ZVI-TMDV-P, ZVI-TMDV-C, ZVI-TMDV-G, ZVI-TMDV-AW, ZVI-TMDV-AA, ZVI-TMDV |
|---|---|
| Brands | Zennio |
Description

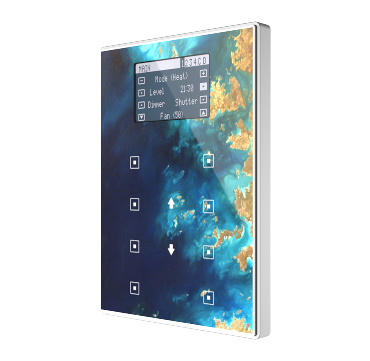

TMD-Display View is a room controller with a 1.8” backlit display that will cause the desired aesthetic impression in any ambience.
It is able to manage climate, audio, shutters, lights, etc., thanks to its 32 functions distributed in up to 4 pages accessible by pressing or sliding on the central area of the panel. TMD-Display View also includes thermostat function, internal temperature probe and two analog/digital inputs for great functionality.
Its customisation is based on a professional printing on a high-strength tempered glass.
On-line application for designing your own Capacitive Switch.
APPLICATION PROGRAM ETS:
Only for ETS4/ETS5/ETS6
Downloads
| Technical Documentation | Date | Version | Downloads |
| Datasheet | 4 | ||
| Manual | [1.2]_a | ||
| Manual On-line Application for Designing your own Capacitive Switch Touch-MyDesign | |||
| Specific Manuals: | |||
| – Zennio Thermostat Manual | [0.2]_b | ||
| – Temperature Probe Manual | [0.1]_c | ||
| – Binary Inputs Manual | [0.3]_a | ||
| – Motion Detector Manual | [0.3]_a | ||
Available Variants of this series:

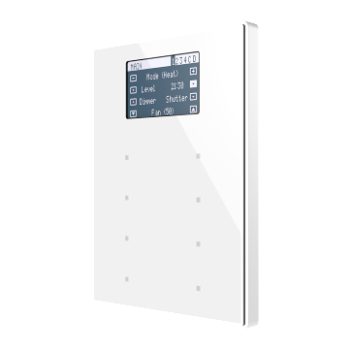

Capacitive touch panel with 8 buttons and display - ZVI-TMDV-PW
Frame: PC-ABS; Colour: White

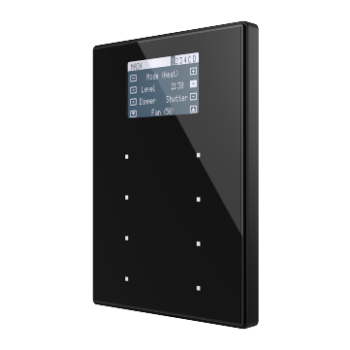

Capacitive touch panel with 8 buttons and display - ZVI-TMDV-PA
Frame: PC-ABS; Colour: Anthracite

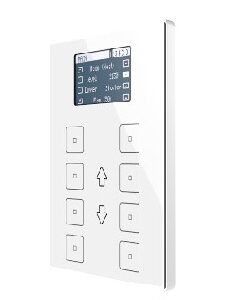

Capacitive touch panel with 8 buttons and display - ZVI-TMDV-P
Frame: PC-ABS; Colour: Custom

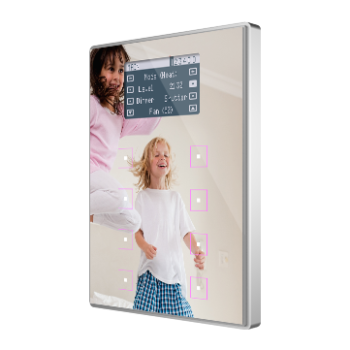

Capacitive touch panel with 8 buttons and display - ZVI-TMDV-C
Frame: Chromed; Colour: Custom

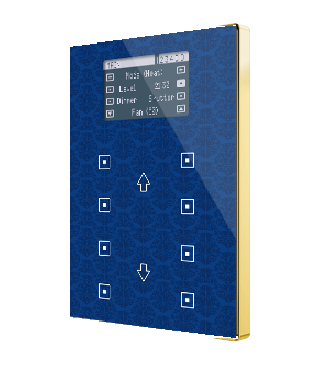

Capacitive touch panel with 8 buttons and display - ZVI-TMDV-G
Frame: Golden; Colour: Custom

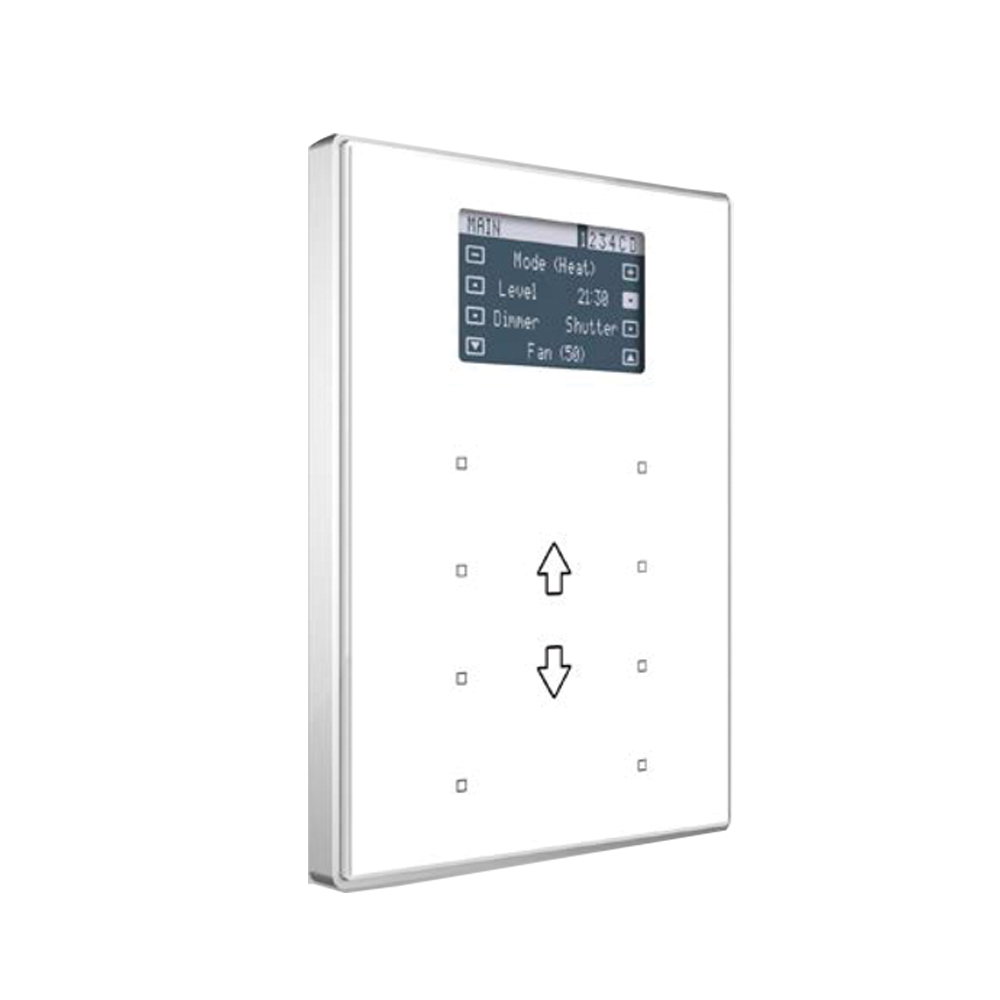

Capacitive touch panel with 8 buttons and display - ZVI-TMDV-AW
Frame: Aluminium; Colour: White

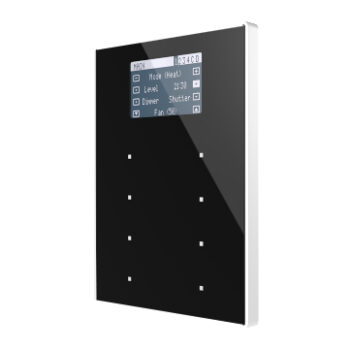

Capacitive touch panel with 8 buttons and display - ZVI-TMDV-AA
Frame: Aluminium; Colour: Anthracite
