Push-button Plus TS 55 | Series .02 – with temperature sensor and button operation

REF: BE-TA55TX.X2 Categorias: , , , Etiquetas: , ,
Description

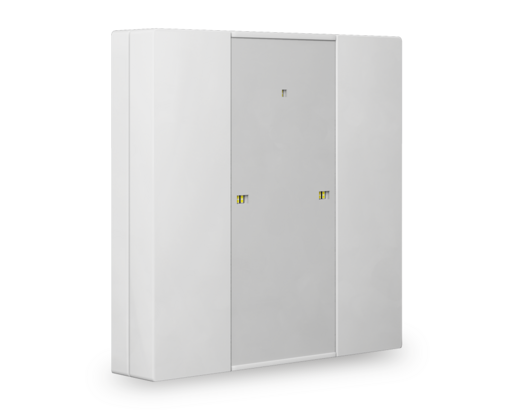

The MDT Push-button Plus TS 55 is a clearly arranged KNX push-button with horizontally arranged 2 button operation, temperature sensor and status LEDs. It features almost all the functions of the binary input and is designed for flush-mounted installation. By simply pressing a button, the push-button can call up parameterised functions such as scenes or the dimming function. The push-button has up to 8 two-colour LEDs for the respective inputs and a two-colour orientation LED, as well as 4 logic blocks. The LEDs can be individually parameterised. A separate labelling field is available for labelling the key functions. Temperature sensor to measure room temperature. Middle text field with cover foil for individual labelling. Push-buttons can be programmed for 1 or 2 button operation. Single- and double button operation for Switching, Dimming, Blinds, Values. Innovative group control with long / extra long operation. Value / Scenes toggle with up to 4 values. Short / long button push and 2 objects. 4 Logic blocks. 2 / 4 / 6 / 8 Operation/Status LEDs (Red / Green) and Orientation light independently controllable. Switch object to control the Led priority. Installation in an installation box with included support ring. Integrated bus coupler. 3 years warranty. Made in Germany.

The MDT Push-buttons Plus 55 fit into the switch lines of leading manufacturers, such as:

  • GIRA Standard 55, E2, E22, Event, Esprit
  • BERKER S1, B3, B7
  • JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW
  • MERTEN 1M, M-Smart, M-Plan, M-Pure

Channels: 2-fold, 4-fold, 6-fold, 8-fold.

Colour: Pure white matt, Pure white gloss.

Temperature Sensor: Yes.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 From ETS 5.7x 09/23 V2.0a knxprod
Functional overview 06/23 pdf
Datasheet 09/23 pdf
Assembly and operational instructions 09/23 pdf
Technical manual 09/23 pdf
Tender texts Link
Print template with icons. Requires Adobe Acrobat Reader zip
Available Variants of this series:
Push-button Plus TS 55 | Series .02 - with temperature sensor and button operation
Colour: Pure white matt; Button Operation: 2; Channels: 2-fold
Push-button Plus TS 55 | Series .02 - with temperature sensor and button operation
Colour: Pure white gloss; Button Operation: 2; Channels: 2-fold

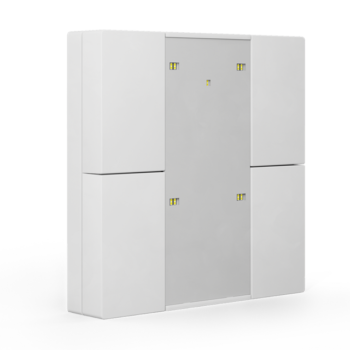

Push-button Plus TS 55 | Series .02 - with temperature sensor and button operation
Colour: Pure white matt; Button Operation: 4; Channels: 4-fold
Push-button Plus TS 55 | Series .02 - with temperature sensor and button operation
Colour: Pure white gloss; Button Operation: 4; Channels: 4-fold

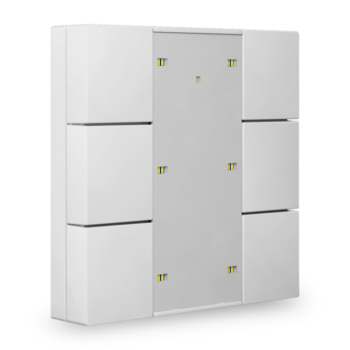

Push-button Plus TS 55 | Series .02 - with temperature sensor and button operation
Colour: Pure white matt; Button Operation: 6; Channels: 6-fold
Push-button Plus TS 55 | Series .02 - with temperature sensor and button operation
Colour: Pure white gloss; Button Operation: 6; Channels: 6-fold

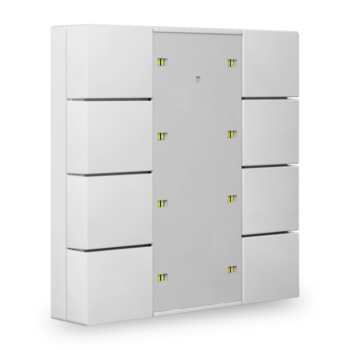

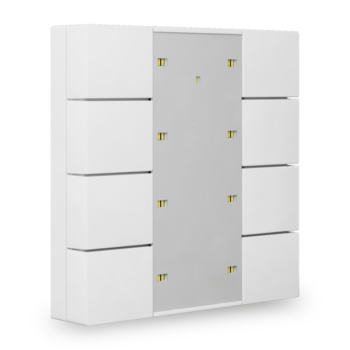

Push-button Plus TS 55 | Series .02 - with temperature sensor and button operation
Colour: Pure white matt; Button Operation: 8; Channels: 8-fold
Push-button Plus TS 55 | Series .02 - with temperature sensor and button operation
Colour: Pure white gloss; Button Operation: 8; Channels: 8-fold

Additional information

Variants

BE-TA55T2.02, BE-TA55T2.G2, BE-TA55T4.02, BE-TA55T4.G2, BE-TA55T6.02, BE-TA55T6.G2, BE-TA55T8.02, BE-TA55T8.G2

Brands

MDT
