Additional information
| Brands | Zennio |
|---|
Description

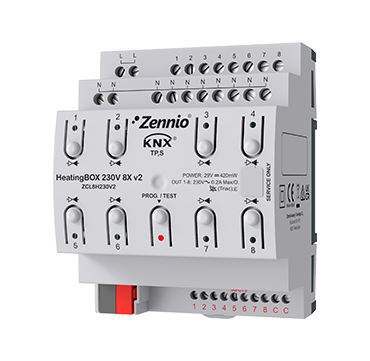

Actuator for climate systems based on water pipes which allows the control of up to 8 outputs for on/off valves operated at 230 VAC by means of triacs with short-circuit protection. It includes independent thermostat for each output, 8 analogue-digital inputs and a module with 10 logical functions. It has a sole power input for all the outputs, as well as a common neutral for an easier installation of the valves. It allows manual control of the outputs with status indication through LEDs.
APPLICATION PROGRAM ETS:
Only for ETS5/ETS6
Downloads
| Technical Documentation | Date | Version | Downloads |
| Datasheet | 1 | ||
| Manual | [1.5]_b | ||
| Specific Manuals: | |||
| – Zone Heating Control Manual | [1.1]_a | ||
| – Zennio Thermostat Manual | [3.0]_a | ||
| – Temperature Probe Manual | [3.0]_a | ||
| – Binary Inputs Manual | [2.0]_a | ||
| – Logical Functions Manual | [3.0]_a | ||
