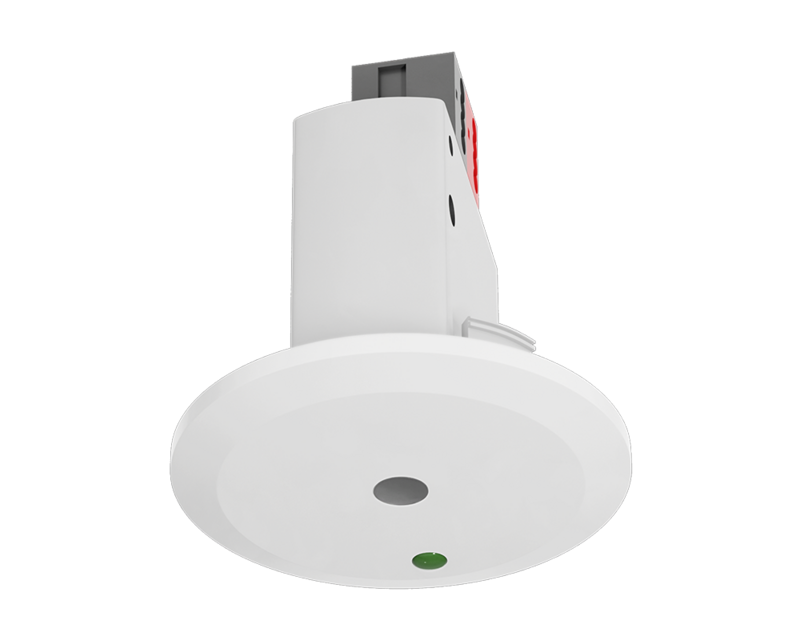

Brightness Sensor/-Controller | With constant level light intensity – ceiling in 35mm Kaiser box


The Brightness Sensor / -Controller with constant level light intensity is suited for ceiling installation in 35 mm Kaiser installation box. Brightness Sensor with constant level light intensity to control up to 3 light rows. Brightness value can be read out. Orientation light function (brightness and time adjustable). Day / night mode with separate settings. 35 mm Kaiser installation box included (installation depth 45 mm). Dimensions (W x H x D): 43 mm x 43 mm x 30 mm. Integrated bus coupling unit. Production in Germany certified according to ISO 9001. 3 year warranty.

Mounting: Ceiling.

Sensors: Yes.

Constant Light Control: Yes.


Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 10/17 V1.1a knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
Available Variants of this series:
