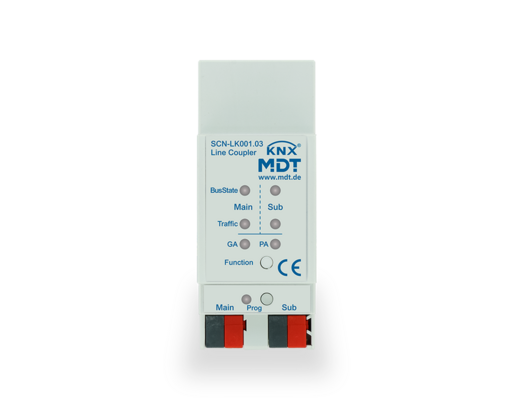

Line Coupler | With Data Secure

REF: SCN-LK001.03 Categorias: , , Etiquetas: , ,

KNX Line Coupler: This Interface connects two KNX lines to each other. Electrical isolation between the lines and reduction of the busload by using the filter function. Line Coupler to connect two KNX lines to each other. Electrical isolation between the lines. Separate bus power supply for each line required. Filter functions to reduce bus load. Supports extended group addresses. Supports KNX Data Secure (from ETS 5.7.2). Quick application download (long frame support with ETS 5 or higher). Modular installation device for DIN 35 mm rails. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: MDRC.

Device width: 2SU.


Technical Documentation Date Version Downloads
Productdatabase ETS5/6 From ETS 6 with Data Secure and segment coupler functionality, hardware from R6.1 08/23 V5.0 knxprod
Productdatabase ETS5/6 From ETS5.7.2 using the KNX Data Secure function 02/22 V4.2 knxprod
Productdatabase ETS4 without Data Secure 08/23 V3.0a knxprod
Datasheet pdf
Assembly and operational instructions pdf
Functional overview 01/23 pdf
Tender texts Link
CAD-drawing zip
Available Variants of this series:
