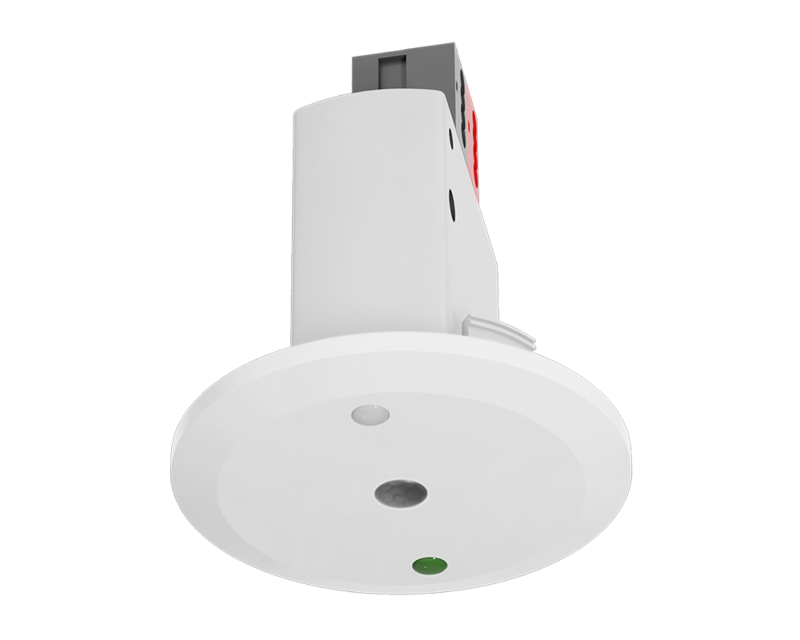

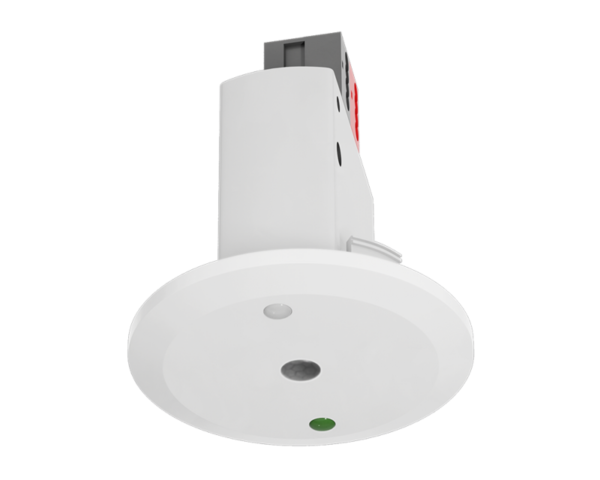

Mini Presence Detector 360° | Flush mounted – for Kaiser Box

REF: SCN-P360D1.01 Categorias: , , Etiquetas: , , , , , , ,
Description

The MDT Mini Presence Detector with 1 pyro sensor and a high-resolution lens detect even the smallest movements. For ceiling installation in 35 mm Kaiser installation box. Presence detector with light sensor. 1 sensor with high resolution lens for detection. Coverage presence 3 – 4 m Ø. Switching function depending on brightness and movement. Brighness value can be read out. Master / slave function adjustable. Scene functions. Day / night function, monitoring with messages. HVAC control channel (adjustable over a certain period). Block and forced setting functions. Orientation light function for leaving the room. 35 mm installation box included in delivery (installation depth 45 mm). Dimensions (W x H x D): 43 mm x 43 mm x 30 mm. Integrated bus coupling unit. 3 year warranty.

Mounting: Ceiling.

Assortment: free installation.

Sensors: Yes.

Hkl Channel: Yes.

Reach: 4 m.

Max. Range (Ø) Presence: 5 m.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 08/17 V2.4 knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
Available Variants of this series:
