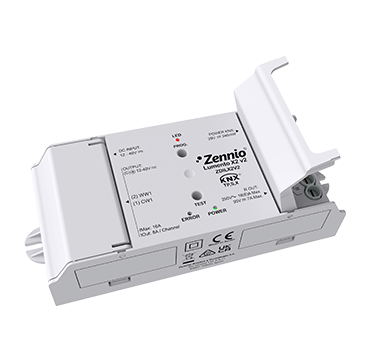

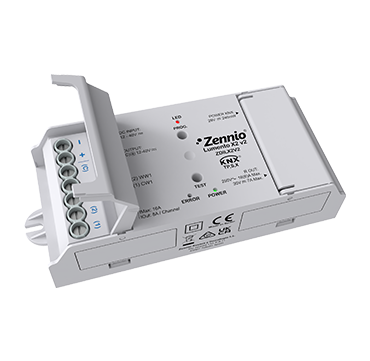

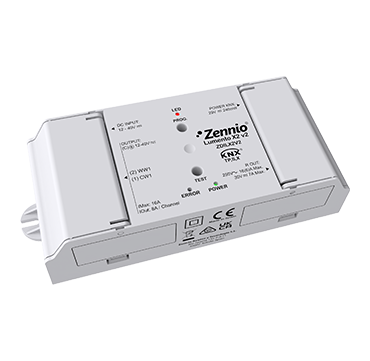

Lumento X2 v2 | 2-channel constant voltage PWM dimmer for DC LED loads

REF: ZDILX2V2 Categorias: , Etiquetas: , , , ,
Description

LED dimmer with 2 channels designed for LED technology, featuring constant voltage regulation through pulse width modulation (PWM at 1000 hz).
The dimming channels can be configured as independent channel o as TW channel. Additionally, it includes a relay output (16 A) to control the LED power supply or for independent use, as well as a manual test button to check the functioning of the channels. Among its comprehensive functionality, the Color Temperature control and the HCL control (Human Centric Lighting) stand out. It is compatible with KNX Secure.
Maximum current per channel: 8 A. Maximum current per device: 20 A. Power supply: 12-40 VDC.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 2 pdf
Manual  [1.0]_a pdf
Specific Manuals:
 – LED Dimming Manual [1.0]_a pdf
 – Logical Functions Manual [3.0]_a pdf
KNX Secure Guide b pdf
Available Variants of this series:
