Additional information
| Brands | Zennio |
|---|
Description

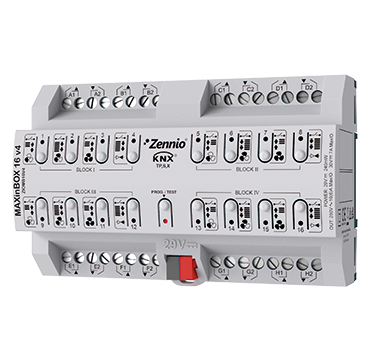

Multifunction actuator for DIN rail (8 units) with 16 outputs (16 A C-Load) which offer multiple configuration as shutter channels, as individual outputs or as blocks of 2-pipes fan coil controller. It allows manual control of its outputs through the push buttons on the cover. It includes 20 independent logical functions. It is compatible with KNX Secure.
Accessories: AC/DC shutter adapters.
APPLICATION PROGRAM ETS:
Only for ETS5/ETS6
Downloads
| Technical Documentation | Date | Version | Downloads |
| Datasheet | 1 | ||
| Manual | [1.10]_a | ||
| Specific Manuals: | |||
| – ’Relays’ Fan Coil Manual | [4.0]_a | ||
| – Individual Binary Outputs Manual | [2.0]_a | ||
| – Shutter Channels Manual | [6.0]_b | ||
| – Logical Functions Manual | [3.0]_a | ||
| KNX Secure Guide | b | ||
