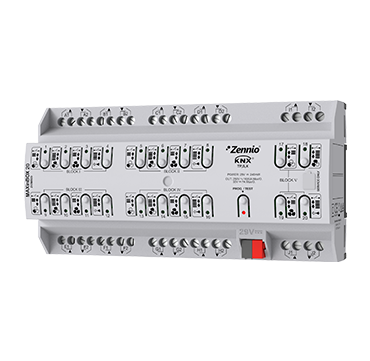

MAXinBOX 20 | KNX multifunction actuator with KNX Secure – 20 outputs 16A

Description

Multifunction actuator for DIN-rail (10 units) that offers multiple configurations of up to 10 shutter channels, up to 20 independent outputs of 16 A (capacitive loads supported) and up to 5 blocks of 2-pipes fan coil controller. It allows manual control of its outputs thanks to the push buttons on the cover. LED indicators can show the status of its outputs. It includes 30 independent logical functions to enlarge the versatility of the automations in KNX system. It is compatible with KNX Secure.

Accessories: AC/DC shutter adapters.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 1 pdf
Manual [1.10]_a pdf
Specific Manuals:
 – ’Relays’ Fan Coil Manual [4.0]_a pdf
 – Individual Binary Outputs Manual [2.0]_a pdf
 – Shutter Channels Manual [6.0]_b pdf
 – Logical Functions Manual [3.0]_a pdf
KNX Secure Guide b pdf
Available Variants of this series:
