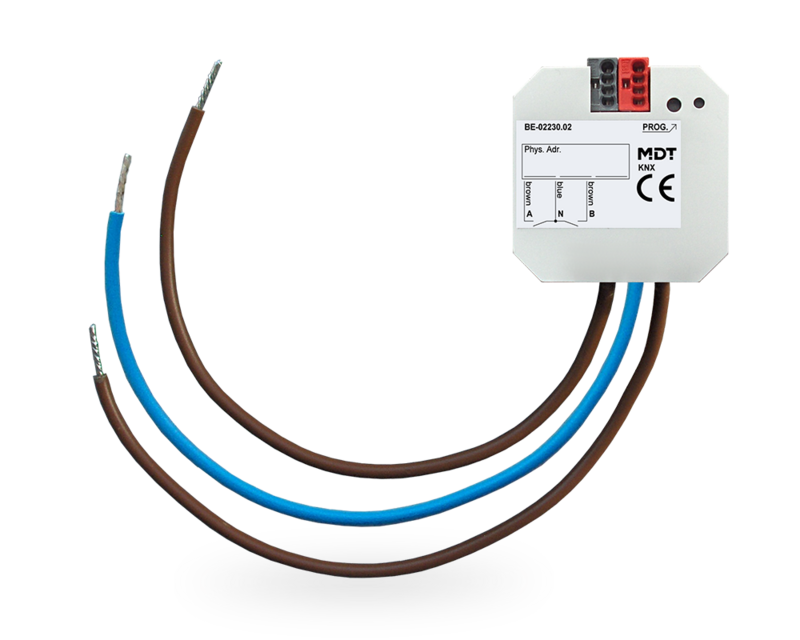

Universal Interface BE | Flush mounted – 230 V

REF: BE-02230.02 Categorias: , Etiquetas: , , ,
Description

The MDT Universal Interface BE, for example, makes conventional push-buttons, switches, window and auxiliary contacts “smart” for KNX. The comprehensive application provides the suitable parameters for a wide range of applications. Versions for 230 V AC are available. To connect push-buttons or auxiliary contacts. New multi-touch function, sends up to 4 values / DPTs on the same or diffrent objects. Innovative group control with long / extra long button press. 4 integrated logic modules, e.g. evaluation of the inputs (e.g. window closed or sending second object). NO or NC contact operation, programmable length of button push. Dimming and shutter function for 1 and 2 button operation. Forced setting function and switching commands for each output. Short / long button push with 2 objects. Integrated pulse and switching counters with extensive counter functions. Cyclical sending of contact state programmable. Flush mounted installation (length of connection cables: 22 cm). Dimensions (W x H x D): 41 mm x 41 mm x 12 mm. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: Flush-mounted.

Channels: 2-fold.

Execution: 230 V.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 from ETS5.7x 01/22 V3.2a knxprod
Datasheet pdf
Assembly and operational instructions pdf
Tender texts Link
Technical manual pdf
Available Variants of this series:
