Additional information
| Variants | ZVI-TMDD-P, ZVI-TMDD-C, ZVI-TMDD-G, ZVI-TMDD |
|---|---|
| Brands | Zennio |
Description

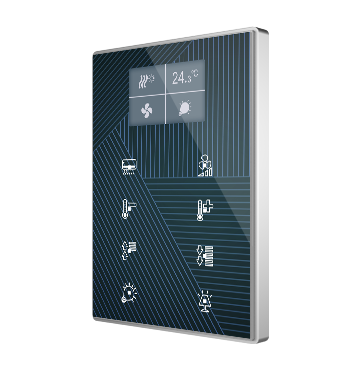

TMD-Display One is a totally customisable room controller that will cause the desired aesthetic impression in any ambience. Anyone can create unique compositions, which could include images, icons, texts or logos. This customisation is printed on a high-strength tempered glass, with an anodized aluminium frame to finish off the author’s work. TMD-Display is able to manage climate, audio, shutters, lights, etc., all through an intuitive and modern touch panel with 8 buttons. TMD-Display also includes thermostat function, internal temperature probe, 2 analog/digital inputs.
Ref. ZVI-TMDD: Aluminium frame variant.
On-line application for designing your own Capacitive Switch.
APPLICATION PROGRAM ETS:
Only for ETS4/ETS5/ETS6
Downloads
| Technical Documentation | Date | Version | Downloads |
| Datasheet | 6 | ||
| Manual | [2.2]_a | ||
| Icon List | [2.1]_a | ||
| Manual On-line Application for Designing your own Capacitive Switch Touch-MyDesign | |||
| Specific Manuals: | |||
| – Zennio Thermostat Manual | [0.2]_b | ||
| – Temperature Probe Manual | [0.1]_c | ||
| – Binary Inputs Manual | [0.1]_a | ||
| – Motion Detector Manual | [0.2]_c | ||
Available Variants of this series:

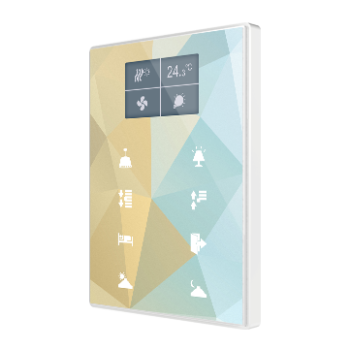

Capacitive touch panel with 8 buttons and display with thermostat - ZVI-TMDD-P
Frame: PC-ABS; Colour: Custom

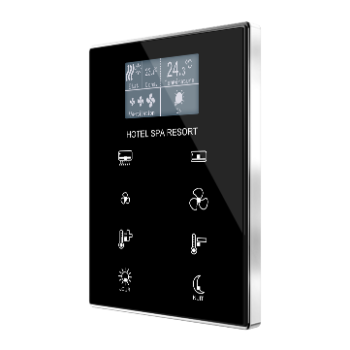

Capacitive touch panel with 8 buttons and display with thermostat - ZVI-TMDD-C
Frame: Chromed; Colour: Custom
