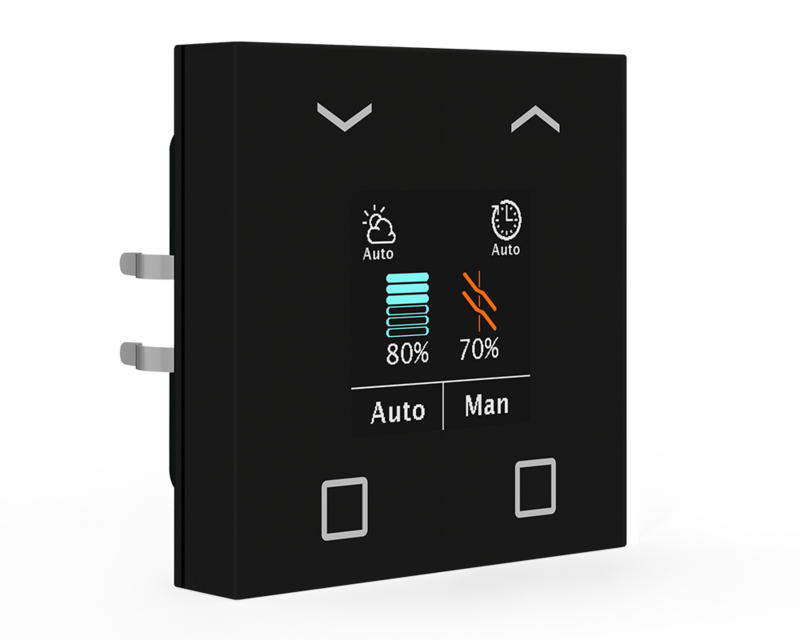

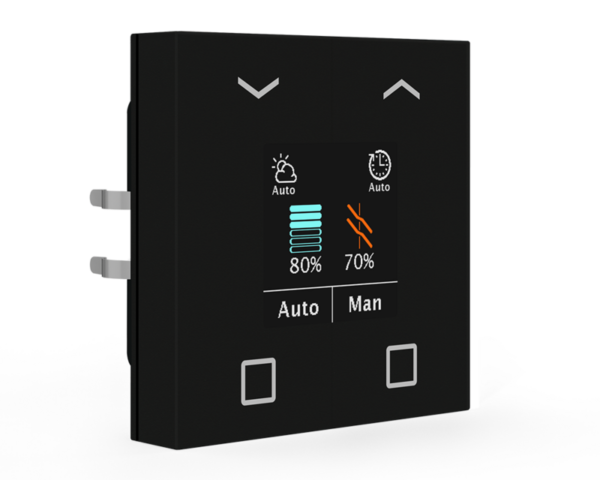

Shutter Push-button Smart 55 | Colour Display / Digital labeling / integrated timer / 4 Folds

Description

The MDT Shutter Push-button Smart 55 with colour display for function and status notifications was specifically developed with blind and shutter control in mind. The shading status can be seen at a glance; messages such as “wind alarm” are immediately visible on the display. The integrated daily, weekly and astronomical timer reliably assumes daily repetitive tasks and can provide other bus participants with the time and date. Fits 55 mm systems / ranges. Active color display for function and status indication. Display brightness adjustable via brightness and day / night object. Display of altitude, slat and wind / rain / frost alarm. Up / down buttons for manual operation. Innovative group control with long / extra long button press. Timer with 8 switching times, power reserve. Daily / weekly / astro switching function. Automatic holiday calculation. Switching times adjustable via ETS and on the push-button. Control of height and slat via timer. Time switch and automatic shading can be activated manually. Output objects for date / time (master). Date / time adjustable via bus (slave). 8 logic blocks with 4 inputs each. Installation in an installation box with included support ring. No additional power supply required. Integrated bus coupling unit. Production in Germany certified according to ISO 9001. 3 year warranty.

The MDT Shutter Push-button Smart 55 fits into the switch lines of leading manufacturers, such as:

White

  • GIRA Standard 55, E2, E22, Event, Esprit
  • BERKER S1, B3, B7
  • JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW
  • MERTEN 1M, M-Smart, M-Plan, M-Pure

Black

  • GIRA E2
  • BERKER B3, B7
  • JUNG A550
  • MERTEN M-Pure

Feature: Push Button.

Colour: Pure white gloss, Black matt.

Functional Areas: 4-fold.

Colour Display: Yes.

Digital Labeling: Yes.

Integrated Timer: Yes.

Assortment: 55 mm.

Downloads

Technical Documentation Date Version Downloads
Device Configuration App (DCA) ETS5/6 From ETS5.7.x 07/23 V5.1.2.1 etsapp
Productdatabase ETS5/6 From ETS5.7x 09/21 V1.0 knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
Available Variants of this series:
Shutter Push-button Smart 55 | Colour Display / Digital labeling / integrated timer / 4 Folds
Colour: Pure white gloss
Shutter Push-button Smart 55 | Colour Display / Digital labeling / integrated timer / 4 Folds
Colour: Black matt
