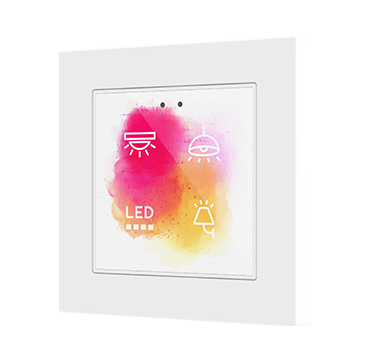

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55×55 (ZS55 frame not included)

Description

Customisable backlit capacitive touch switches in the Flat 55 family (standard frames 55 x 55 mm) with proximity sensor and flat design (9 mm). Flush fitting with Zennio ZS55 frames, switches and sockets. Create unique designs, including images, icons, texts or logos printed on tempered glass. 1, 2 or 4 button versions available all with backlit icons, that adapt according to ambient luminosity and proximity sensor. Flat 55 v2 incorporates a thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors.

Installation in standard mounting box with 55 x 55 frames of 1/2/3/4 modules (white, gloss white, anthracite or silver).

Frame not included.

Available models: Standard White/Gloss White/Anthracite/Silver or Customised.

Accessories: temperature probe and motion sensor.

On-line application for designing your own Capacitive Switch.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 4 pdf
Manual [1.8]_a pdf
Manual On-line Application for Designing your own Capacitive Switch Touch-MyDesign pdf
Specific Manuals:
 – Capacitive Touch Switches Manual [1.7]_a pdf
 – Brightness Manual [2.0]_a pdf
 – Proximity and Luminosity Manual [5.0]_a pdf
 – Zennio Thermostat Manual [2.0]_a pdf
 – Temperature Probe Manual [3.0]_a pdf
 – Binary Inputs Manual [2.0]_a pdf
 – Motion Detector Manual [3.0]_a pdf
Technical Note – Compatible Frames for Flat 55 Series 3 pdf
Available Variants of this series:

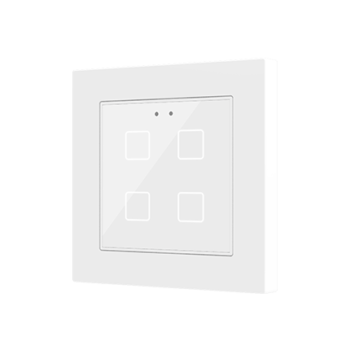

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X4V2GW
Buttons: 4; Colour: Gloss White
Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X4V2W
Buttons: 4; Colour: White
Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X4V2S
Buttons: 4; Colour: Silver

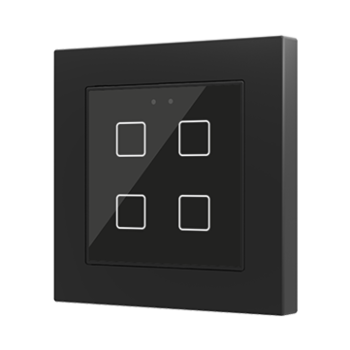

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X4V2A
Buttons: 4; Colour: Anthracite
Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X4V2
Buttons: 4; Colour: Custom
Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X2V2GW
Buttons: 2; Colour: Gloss White

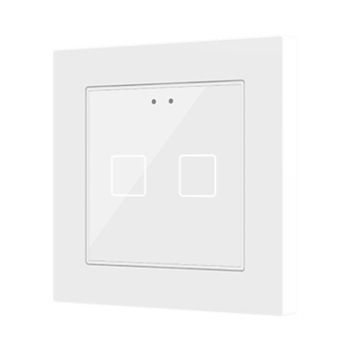

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X2V2W
Buttons: 2; Colour: White

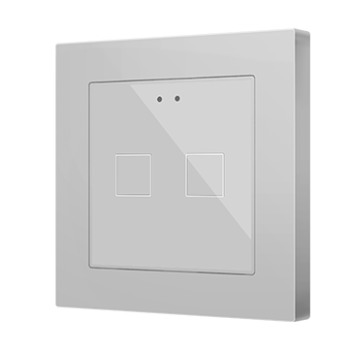

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X2V2S
Buttons: 2; Colour: Silver

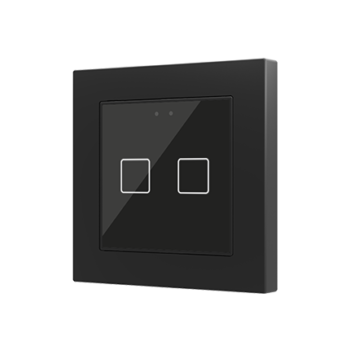

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X2V2A
Buttons: 2; Colour: Anthracite

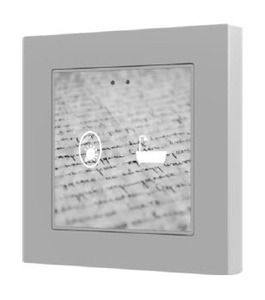

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X2V2
Buttons: 2; Colour: Custom

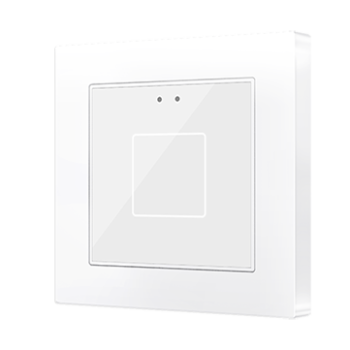

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X1V2GW
Buttons: 1; Colour: Gloss White

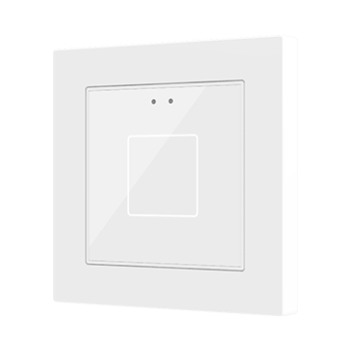

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X1V2W
Buttons: 1; Colour: White

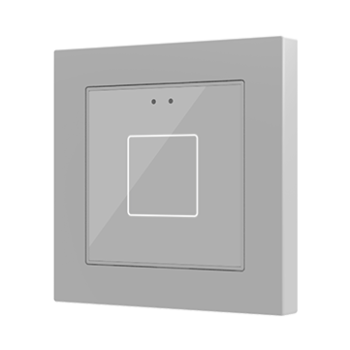

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X1V2S
Buttons: 1; Colour: Silver
Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X1V2A
Buttons: 1; Colour: Anthracite

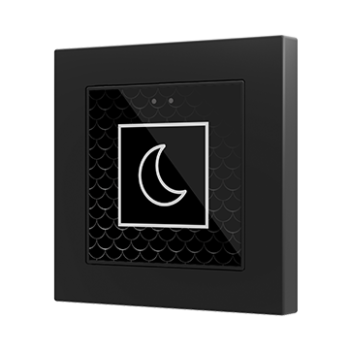

Flat 55 X1/X2/X4 v2 | Glass capacitive push button 55x55 (ZS55 frame not included) - ZVIF55X1V2
Buttons: 1; Colour: Custom

Additional information

Variants

ZVIF55X4V2GW, ZVIF55X4V2W, ZVIF55X4V2S, ZVIF55X4V2A, ZVIF55X4V2, ZVIF55X2V2GW, ZVIF55X2V2W, ZVIF55X2V2S, ZVIF55X2V2A, ZVIF55X2V2, ZVIF55X1V2GW, ZVIF55X1V2W, ZVIF55X1V2S, ZVIF55X1V2A, ZVIF55X1V2
