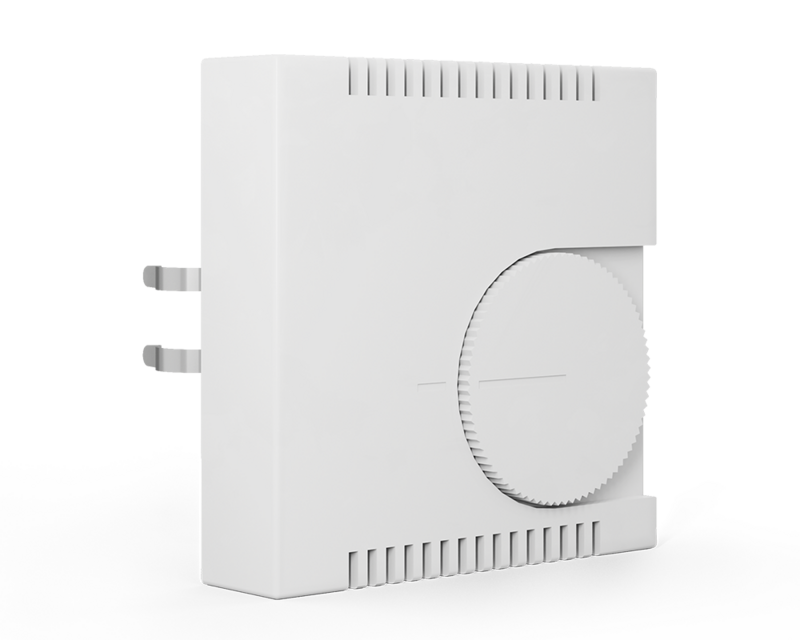

Room Temperature Controller/-Sensor 55

Description

The MDT Room Temperature Controller 55 is used for detecting the temperature of indoor rooms and controlling this. It is used, for example, in combination with an MDT Universal Actuator AKU or heating actuators without an integrated controller.
The MDT Room Temperature Sensor 55 records the temperature and makes it available to other units such as the MDT Heating Actuator AKH. The temperature measuring range is between -10 and 50 °C. Fits 55 mm systems / ranges. Selectable temperature controller (PI, two-position, PWM). Setpoint value is stored on voltage failure. Bit / Byte object to set the given value. For indoor temperature controlling, range -10° to +50 °C. Limit values min / max, Frost protection alarm, Memory for min / max. Setpoint value via visualization, e.g. MDT VisuControl. Day- / night- / frost- / heat protection operation. Status feedback by HVAC and RHCC status objects. Operation mode can be set via Bit / Byte objects. Installation with support ring (included in delivery). Integrated bus coupling unit. Production in Germany, certiied according to ISO 9001 3 year warranty.

The MDT Room Temperature Controller / Sensor 55 fits into the switch lines of leading manufacturers, such as:

  • GIRA Standard 55, E2, E22, Event, Esprit
  • BERKER S1, B3, B7
  • JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW
  • MERTEN 1M, M-Smart, M-Plan, M-Pure

Feature: Room Temperature Controller.

Colour: Pure white matt, Pure white gloss.

Temperature Sensor: Yes.

Room Temperature Controller: No, Yes.

Assortment: 55 mm.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 01/17 V1.4a knxprod
Datasheet pdf
Assembly and operational instructions pdf
Technical manual pdf
Tender texts Link
Available Variants of this series:
Room Temperature Controller/-Sensor 55
Colour: Pure white matt; Room Temperature Controller: Yes; Adjustment knob: No
Room Temperature Controller/-Sensor 55
Colour: Pure white gloss; Room Temperature Controller: Yes; Adjustment knob: No
Room Temperature Controller/-Sensor 55
Colour: Pure white matt; Room Temperature Controller: No; Adjustment knob: No
Room Temperature Controller/-Sensor 55
Colour: Pure white gloss; Room Temperature Controller: No; Adjustment knob: No
Room Temperature Controller/-Sensor 55
Colour: Pure white matt; Room Temperature Controller: Yes; Adjustment knob: Yes
Room Temperature Controller/-Sensor 55
Colour: Pure white gloss; Room Temperature Controller: Yes; Adjustment knob: Yes
