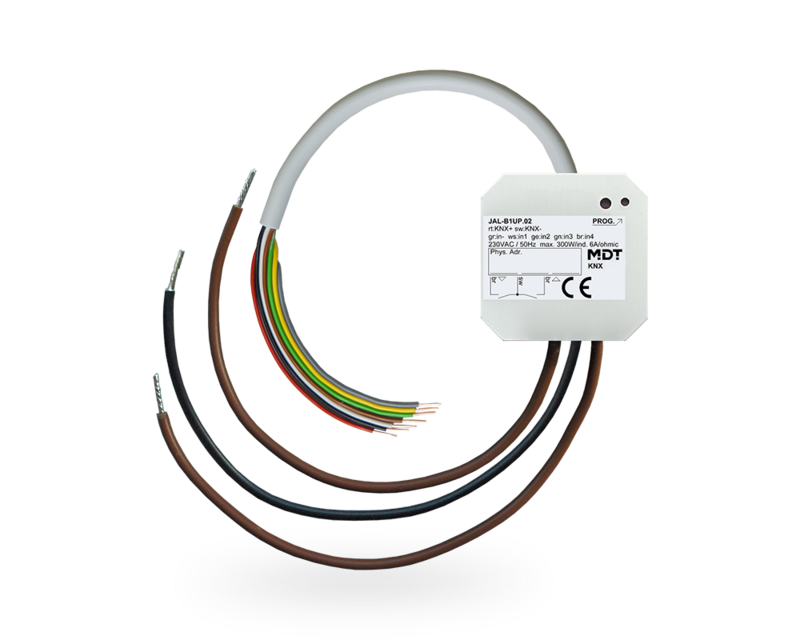

Shutter Actuator JAL | Flush mounted with sunposition calculation

REF: JAL-B1UP.02 Categorias: , Etiquetas: , , , , , ,
Description

The flush-mounted version of the MDT Shutter Actuator JAL is suitable for decentralised installation on the blind or shutter motors. Existing conventional shutter push-buttons or window contacts can be connected directly to the floating binary inputs and evaluated (JAL-B1UP.02 only). Practical ventilation function (window open / tilt). Automatic sun shading / slat adjustment with sun position calculation. Travel-, pause at change of direction, step time adjustable. Separate travel time for up and down adjustable. Tip operation for accurate positioning. Extended 1 Bit automatic positions and logic functions. 1 Byte absolute positioning for shutter and blinds. Alarm, central- and block functions. Priority / forced operation with automatic release time. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. Production in Germany, certified according to ISO 9001. 3 year warranty.

Functions of Binary Inputs (JAL-B1UP.02):

  • To connect push-buttons or window / auxiliary contacts
  • Integrated evaluation of the windows contacts
  • Adjustable transmission behavior of the up / down objects (To the internal contacts or actuators on the KNX bus)
  • Operation of blinds and shutters, 1 and 2 button operation
  • Binary inputs usable as universal interface

Installation Type: Flush-mounted.

Channels: 1-fold.

Ampere: 6 A.

Jalousiemotor: 230 V.

Watts: 300 W.

Sunposition Calculation: Yes.

Binary Inputs: Yes.

You can find a product comparison of our shutter actuators here.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 For JAL-B1UP.02 11/21 V3.9 knxprod
Datasheet pdf
Assembly and operational instructions For JAL-B1UP.02 pdf
Technical manual 06/22 pdf
Tender texts Link
