Shutter Actuator JAL | Flush mounted

REF: JAL-01UP.02 Categorias: , Etiquetas: , , , , ,
Description

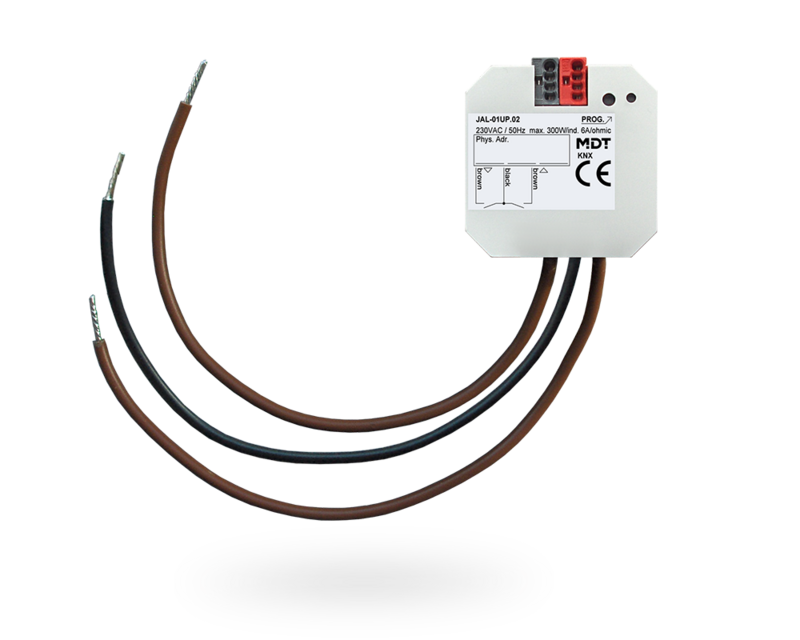

The flush-mounted version of the MDT Shutter Actuator JAL is suitable for decentralised installation on the blind or shutter motors. Practical ventilation function (window open / tilt). Travel-, pause at change of direction, step time adjustable. Separate travel time for up and down adjustable. Tip operation for accurate positioning. Extended 1 Bit automatic positions and logic functions. 1 Byte absolute positioning for shutter and blinds. Alarm, central- and block functions. Priority / forced operation with automatic release time. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: Flush-mounted.

Channels: 1-fold.

Ampere: 6 A.

Jalousiemotor: 230 V.

Watts: 300 W.

You can find a product comparison of our shutter actuators here.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS4/5/6 For JAL-01UP.02 01/22 V3.8b knxprod
Functional overview For JAL-01UP.02 01/23 pdf
Datasheet For JAL-01UP.02 pdf
Assembly and operational instructions For JAL-01UP.02 pdf
Technical manual 06/22 pdf
Tender texts Link
