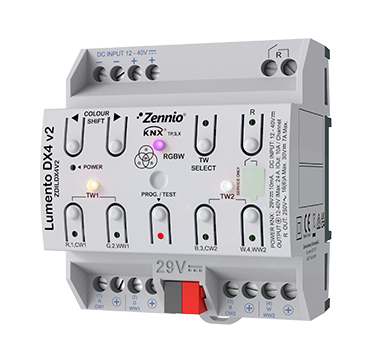

Lumento DX4 v2 | 4-channel constant voltage PWM dimmer in DIN rail for DC LED loads

REF: ZDILDX4V2 Categorias: , Etiquetas: , , , , ,
Description

LED dimmer with 4 channels designed for LED technology, featuring constant voltage regulation and DIN-rail mounting (4.5 units).
The dimming channels can be configured as combinable independent channels, an RGBW channel, RGB+W channels, and combinable TW channels. Additionally, it includes a relay output (16 A) to control the LED power supply or for independent use, as well as manual test buttons to check the functioning of the channels.
Among its comprehensive functionality, the Color Temperature control and the HCL control (Human Centric Lighting) stand out. It also incorporates the Logical Functions module. It is compatible with KNX Secure.
Maximum current per channel: 10 A. Maximum current per device: 24 A. Power supply: 12-40 VDC.

APPLICATION PROGRAM ETS:

Only for ETS5/ETS6

Downloads

Technical Documentation Date Version Downloads
Datasheet 2 pdf
Manual [1.0]_a pdf
Specific Manuals:
 – LED Dimming Manual [1.0]_a pdf
 – Logical Functions Manual [3.0]_a pdf
KNX Secure Guide b pdf
Available Variants of this series:
