Additional information
| Brands | Zennio |
|---|
Description

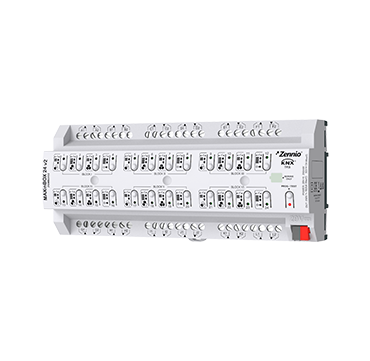

Multifunction actuator for DIN-rail (12 units) that offers multiple configurations of up to 12 shutter channels, up to 24 independent outputs of 16 A (capacitive loads supported) and up to 6 blocks of 2-pipes fan coil controller. It allows manual control of its outputs thanks to the push buttons on the cover. LED indicators can show the status of its outputs. It includes 30 independent logical functions to enlarge the versatility of the automations in KNX system.
Accessories: AC/DC shutter adapters.
APPLICATION PROGRAM ETS:
Only for ETS5/ETS6
Downloads
| Technical Documentation | Date | Version | Downloads |
| Datasheet | 1 | ||
| Manual | [1.6]_a | ||
| Specific Manuals: | |||
| – ’Relays’ Fan Coil Manual | [4.0]_a | ||
| – Individual Binary Outputs Manual | [2.0]_a | ||
| – Shutter Channels Manual | [4.0]_a | ||
| – Logical Functions Manual | [3.0]_a | ||
