Brands | Zennio |
---|

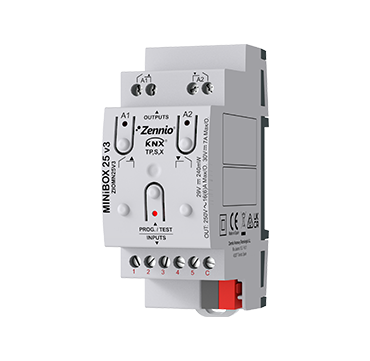

Multifunction actuator for DIN-rail (2 units) with 2 outputs (16 A C-load) which offer multiple configurations as shutter channels or individual outputs. It allows manual control of its outputs through the push buttons on the cover and includes a logical function module. It also incorporates 5 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs, as well as four room thermostats to control heating/cooling systems. It is compatible with KNX Secure.
Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.
APPLICATION PROGRAM ETS:
Technical Documentation | Date | Version | Downloads |
Datasheet | 1 | ||
Manual | [1.5]_a | ||
Specific Manuals: | |||
– ’Relays’ Fan Coil Manual | [4.0]_a | ||
– Zennio Thermostat Manual | [3.0]_a | ||
– Temperature Probe Manual | [3.0]_a | ||
– Binary Inputs Manual | [2.0]_a | ||
– Motion Detector Manual | [3.0]_a | ||
– Individual Binary Outputs Manual | [2.0]_a | ||
– Shutter Channels Manual | [6.0]_b | ||
– Logical Functions Manual | [3.0]_a | ||
KNX Secure Guide | b |
