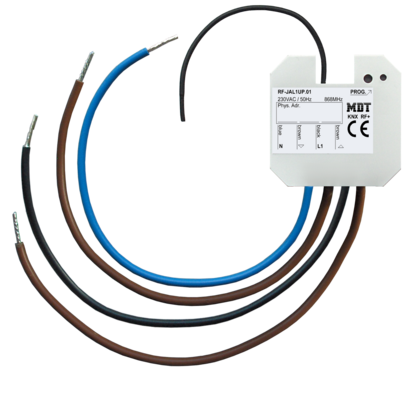

KNX RF+ Shutter Actuator

Description

The MDT KNX RF+ Shutter Actuator receives KNX / EIB telegrams and controls 1 indipendent shutter or sunblind drive. The output uses two monostable relays. KNX RF+ protocol in system mode. Commissioning with ETS 5 or higher. For operation inside the EU, 868 MHz. Operation mode blind / shutter adjustabel. Travel-, pause (on change of direction) and step time adjustable. 1 Bit automatic function and sun protection. 8 Bit positioning for shutter and blinds. 8 scenes. Alarm-, central- and block functions. Flush mounted in an installation box. Connection via MDT KNX RF+ Line Coupler. To upgrade your installation without installing KNX bus cables. Power supply 230 V AC. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. Integrated bus coupling unit. Production in Germany, certified according to ISO 9001. 3 year warranty.

Installation Type: Flush-mounted.

Channels: 1-fold.

Ampere: 10 A.

Execution: 230 V.

Watts: 300 W.

Downloads

Technical Documentation Date Version Downloads
Productdatabase ETS5/6 from ETS5.7x 02/17 V1.0 knxprod
Assembly and operational instructions pdf
Technical manual pdf
Technical Information KNX RF pdf
Tender texts Link
Available Variants of this series:
